Description
Product Overview

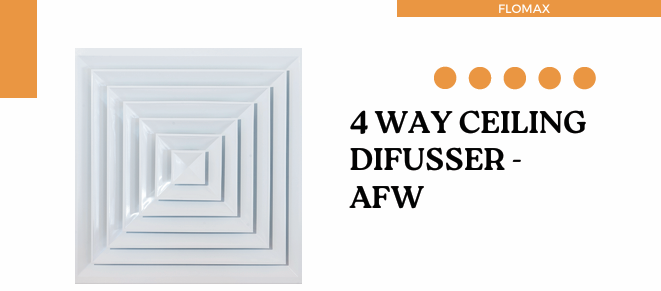

A 4-Way Ceiling Diffuser is a type of air distribution outlet installed in ceilings that disperses conditioned air in four directions. It is commonly used in HVAC systems for even air distribution in rooms.

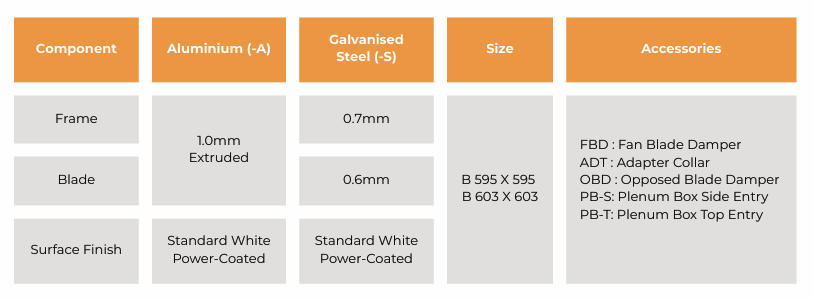

Product Technical Details
| Component | Frame , Blade , Surface Finish |
| Aluminium (-A) | 1.0mm Extruded , Standard White Power-coated |
| Galvanised Steel (-S) | 0.7mm/0.6mm , Standard White Power-coated |

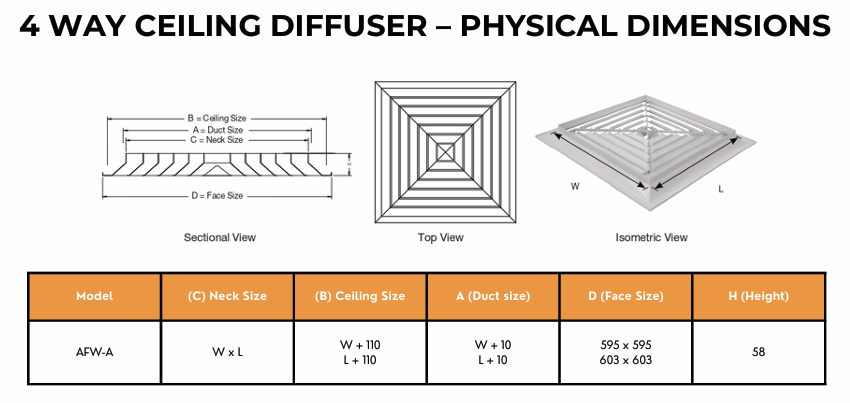

| Size | B 595 x 595 / B 603 x 603 |
| Accessories | FBD : Fan Blade Damper |
| ADT : Adaptor Collar | |
| OBD : Opposed Blade Damper | |
| PB-S : Plenum Box ( Side Entry) | |
| PB-T : Plenum Box ( Top Entry) |
