Description
Product Overview
A 4-Way Double Deflection Ceiling Diffuser is designed for superior air distribution in HVAC systems, offering adjustable, multi-directional airflow with enhanced mixing capabilities. It ensures optimal thermal comfort by reducing drafts while maintaining efficient air dispersion.

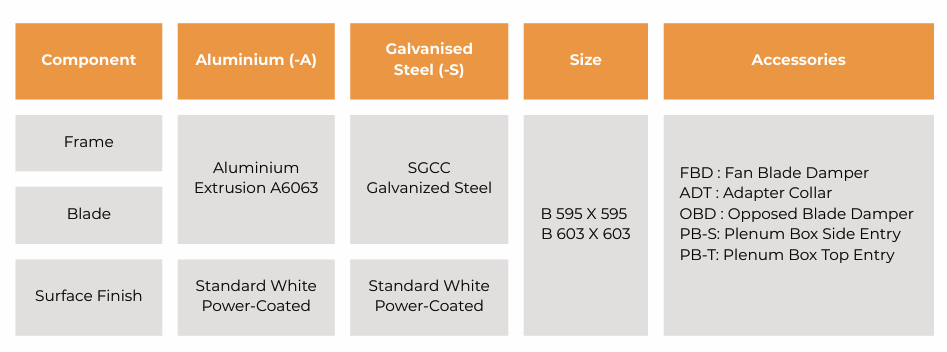

Product Technical Details
| Component | Frame , Blade , Surface Finish |
| Aluminium (-A) | Aluminium Extrusion A6063 , Standard White Powder-Coated |
| Galvanised Steel (-S) | SGCC Galvanised Steel , Standard White Powder-Coated |
| Size | B 595 x 595 / B 603 x 603 |
| Accessories | FBD : Fan Blade Damper |
| ADT : Adaptor Collar | |
| OBD : Opposed Blade Damper | |
| PB-S : Plenum Box (Side Entry) | |
| PB-T : Plenum Box (Top Entry) |
