Description
Product Overview
Double Deflection Grille is an advanced air distribution device featuring two perpendicular sets of adjustable blades (Horizontal + Vertical) that enable precise 3D airflow control. This design provides superior directional management compared to single deflection grilles.

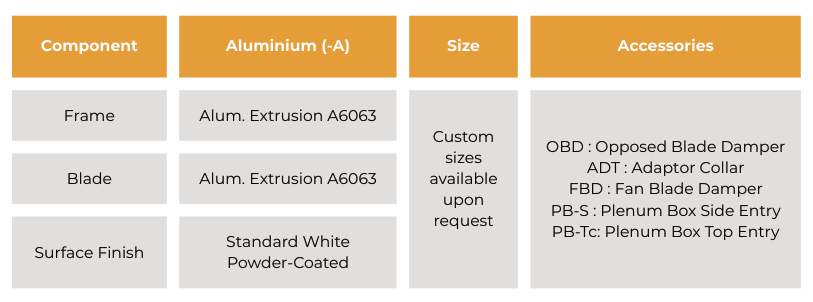

Product Technical Details
| Component | Frame , Blade , Surface Finish |
| Aluminium (-A) | Alum. Extrusion A6063 , Standard White Powder-Coated |
| Size | Custom sizes available upon request |
| Accessories | OBD : Opposed Blade Damper |
| ADT : Adaptor Collar | |
| FBD : Fan Blade Damper | |
| PB-S : Plenum Box (Side Entry) | |
| PB-T : Plenum Box (Top Entry) |
